- e-ASSIST MINI Ratchet Wrench Set No.400ER2-1ME
HAND TOOLS
Screwdrivers, Wrenches, Wire Strippers, and so on.
e-ASSIST MINI Ratchet Wrench Set No.400ER2-1ME
e-ASSIST MINI Ratchet Wrench
Electric x Manual
New era of maintenance work
*60-tooth gear. Fine operation is also good for work in cramped spaces.
*No-load speed 400rpm. Speedy tightening and loosening work.
*Electrical driven model in spite of the size as small as a normal rachet handle.
*Stops at 1N・m during electric operation. Max endurance torque (manual tightening and loosening) is 61N・m.
*Insert a bit from different sides of the body for forward and reverse rotation.
*USB Type-C for recharge.

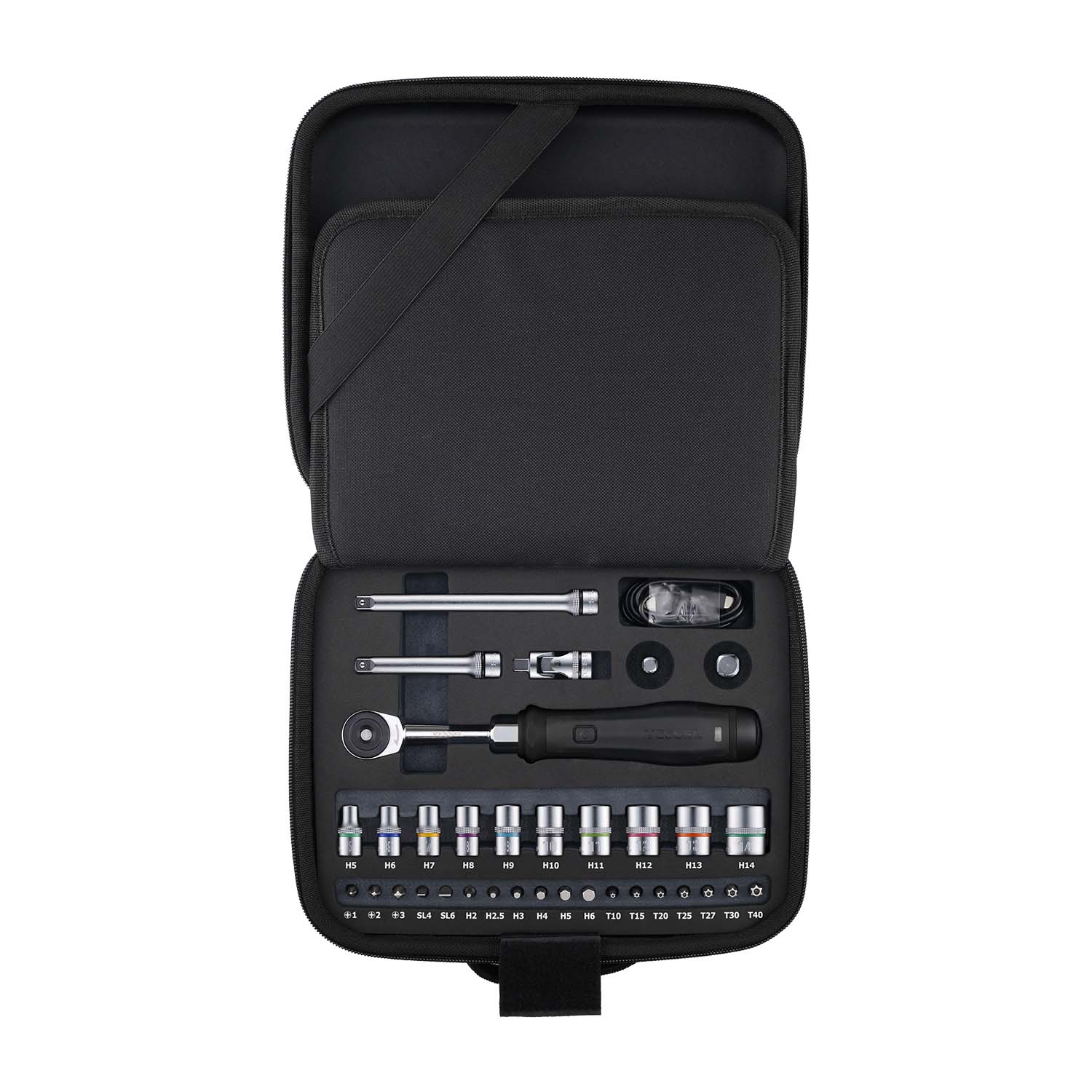

*Supplied in a dedicated case that is useful for storage and carrying.
*Comes with 31 pieces replaceable tools.
*Sockets are color-coded by size.
PRODUCT SPEC
| Model | Overall Length(mm) | Weight(g) | Inner C/T | Code No. |
|---|---|---|---|---|
400ER2-1M |
215 | 302 | 5 | 147219 |
Details
*No-load Speed 400rpm
*Electric Output 1.0 N･m
*Max endurance torque (manual tightening and loosening) is 60N・m
Item PKG (mm)
268 x 223 x 70

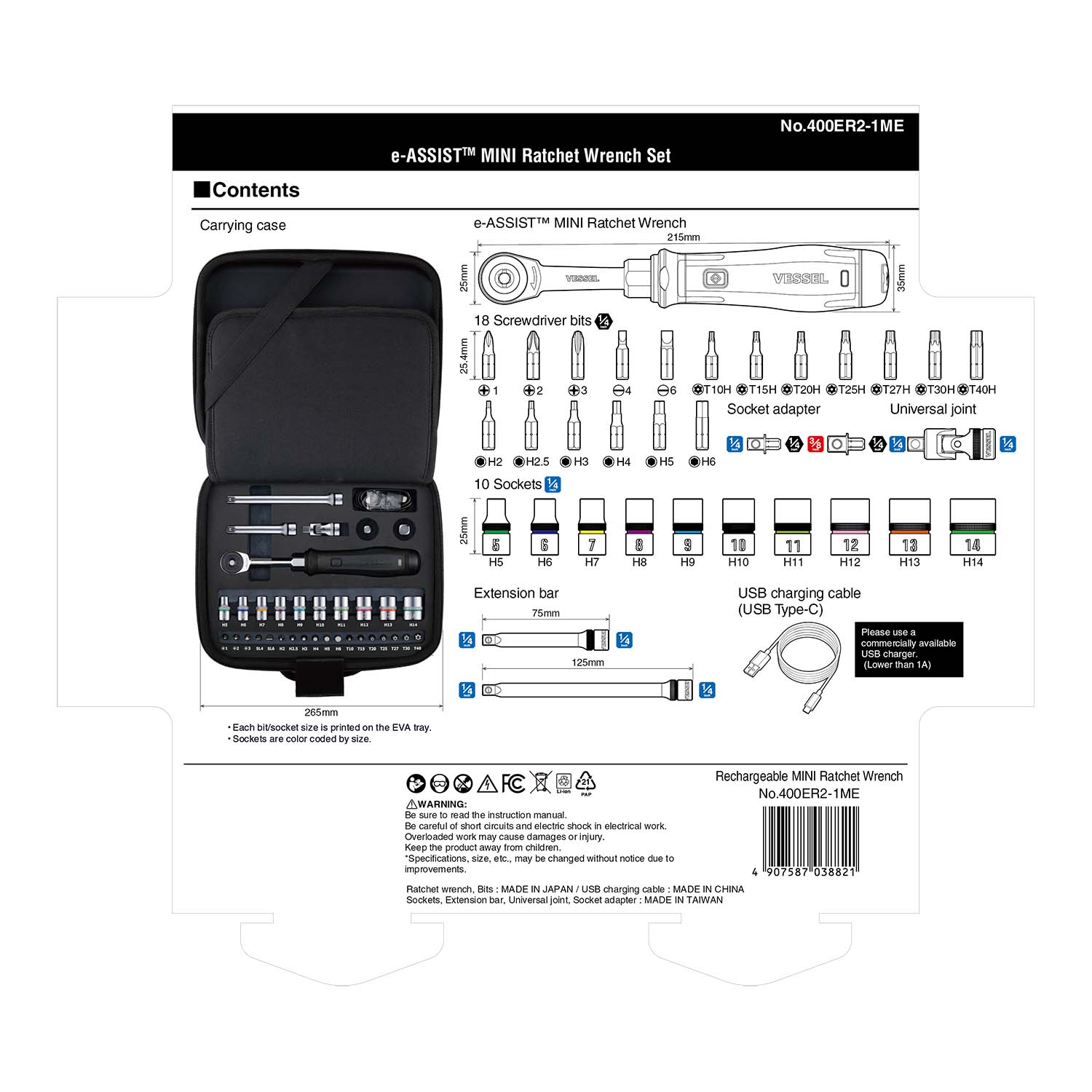

Contents
*Body…1
*18 Bits（+1, +2, +3, -4, -6, T10H, T15H, T20H, T25H, T27H, T30H, T40H, H2, H2.5, H3, H4, H5, H6）…18
*Socket adapter…2
*Universal joint…１
*10 Sockets（H5, H6, H7, H8, H9, H10, H11, H12, H13, H14）…１０
*Extension bar…２
*USB charging cable（1m/ USB Type C）…1
*Instruction manual…1
MOVIE
CATALOG / LEAFLET
Related products
Precautions
*Be sure to read the instruction manual.
*Be careful of short-circuit and electric shock when working with electricity.
*Overloading may cause damage to the product or screws, or injury.
*Keep this product away from children at home.
*FOR SAFETY USE OF e-ASSIST MINI Ratchet Wrench
