Ion Parts Cleaner Vertical Type No.IPC-V4
Foot-installed type Static eliminator / Dust collector
* Industry's first(
*) dust box type cleaner.
*As of March 2022. According to our own research.
* Compact design for easy moving and relocation. Can be installed underfoot.

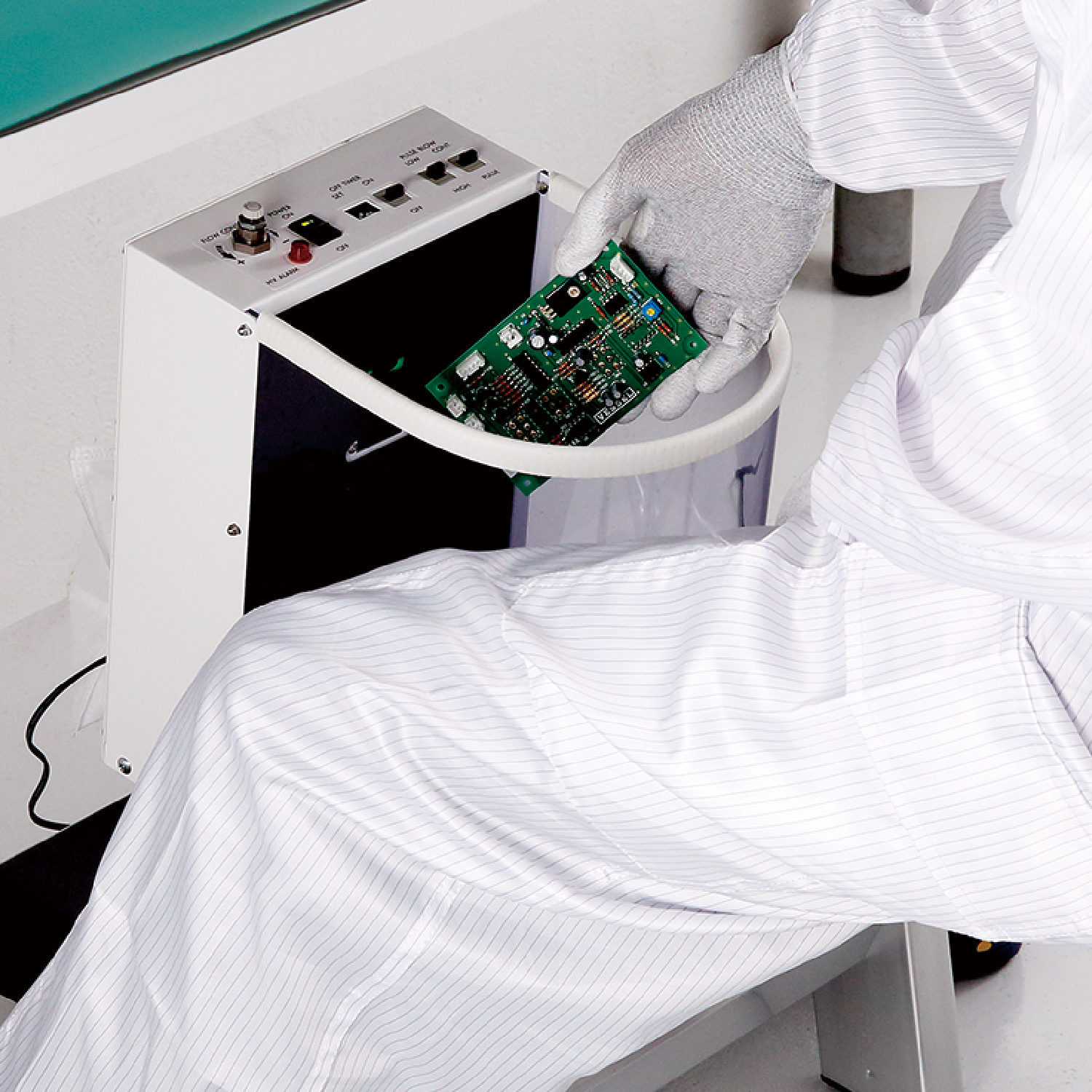

* When a workpiece is inserted through the top opening, an infrared sensor detects the workpiece and the ion air is automatically discharged to eliminate static electricity and dust.
* The time to stop the ion blow after the sensor detects a workpiece can be set. (1/3/5/10/30 sec.)
* Adhesive gel sheet to increase dust collection efficiency.
* Adhesive gel sheet can be washed with water and used many times.
* Air is discharged intermittently, and a pulse blow function that blows off dust with vibration is also selectable.
* No dust collector is needed, reducing power consumption and running costs. The pulse blow function also reduces air consumption.
* Air flow rate can be adjusted with a built-in controller.
PRODUCT SPEC
| Model | Body Size(mm) | Weight(g) | Applied voltage | Power supply | Noise level(dBA) | Fan speed (max)(m3/min) | Air consumption(L/min) | Code No. |
|---|---|---|---|---|---|---|---|---|
IPC-V4 |
430 x 380 x 200 | 3800 | AC5.6kV(p-p) | DC24V +/- 5% | 88.3 | 1.13 | 161 | 621611 |
Ionizing method: AC high frequency corona discharge
Ion balance: ±10V
Item PKG (mm): 430 x 380 x 200
Contents
* Power adapter AD24-IT19 CJ or AD24-IT19E * Adhesive gel sheet for internal wall side (with magnet sheet) IPC-V4GB (Al「eady installed) * Adhesive gel sheet plate forbottom side * Paper pack filter (6 pcs) IPC-A3F *2P-3P conversion adapter * Tilt adjustment spacer (2 pcs) * Instruction manual (IPC-V4, N-3)
Relevant
Ion Parts Cleaner No.IPC-A4
