ESD Mat Grounding Kit No.EPS-GK
From the floor or mat to the working bench, provides an optimal EPA environment

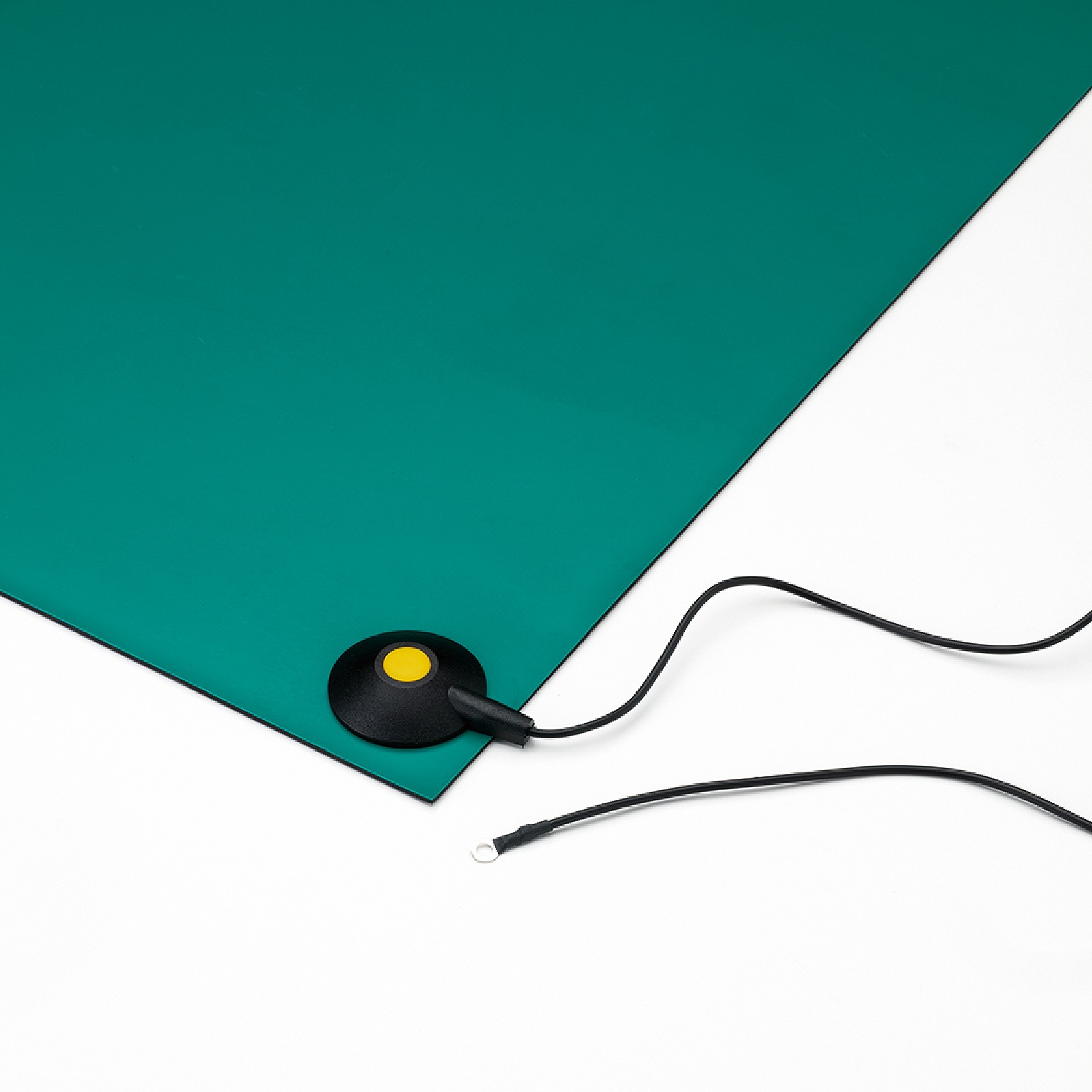

* Conductive rubber mat can be easily and securely grounded.
* Rust-resistant snap, base plate, and screws, which are made of stainless steel.
* No adhesive part, so it can be reused when replacing the mats.
PRODUCT SPEC
| Model | Body Size(mm) | Weight(g) | Cord Length(m) | Code No. |
|---|---|---|---|---|
EPS-GK |
2456 x 41 x 10 | 45 | Approx. 2.4 (with round jack) | 621484 |
Resistance value: Approx. 1Mohm between device and grounding cord (round jack)
Item PKG (mm): 140 x 120 x 20

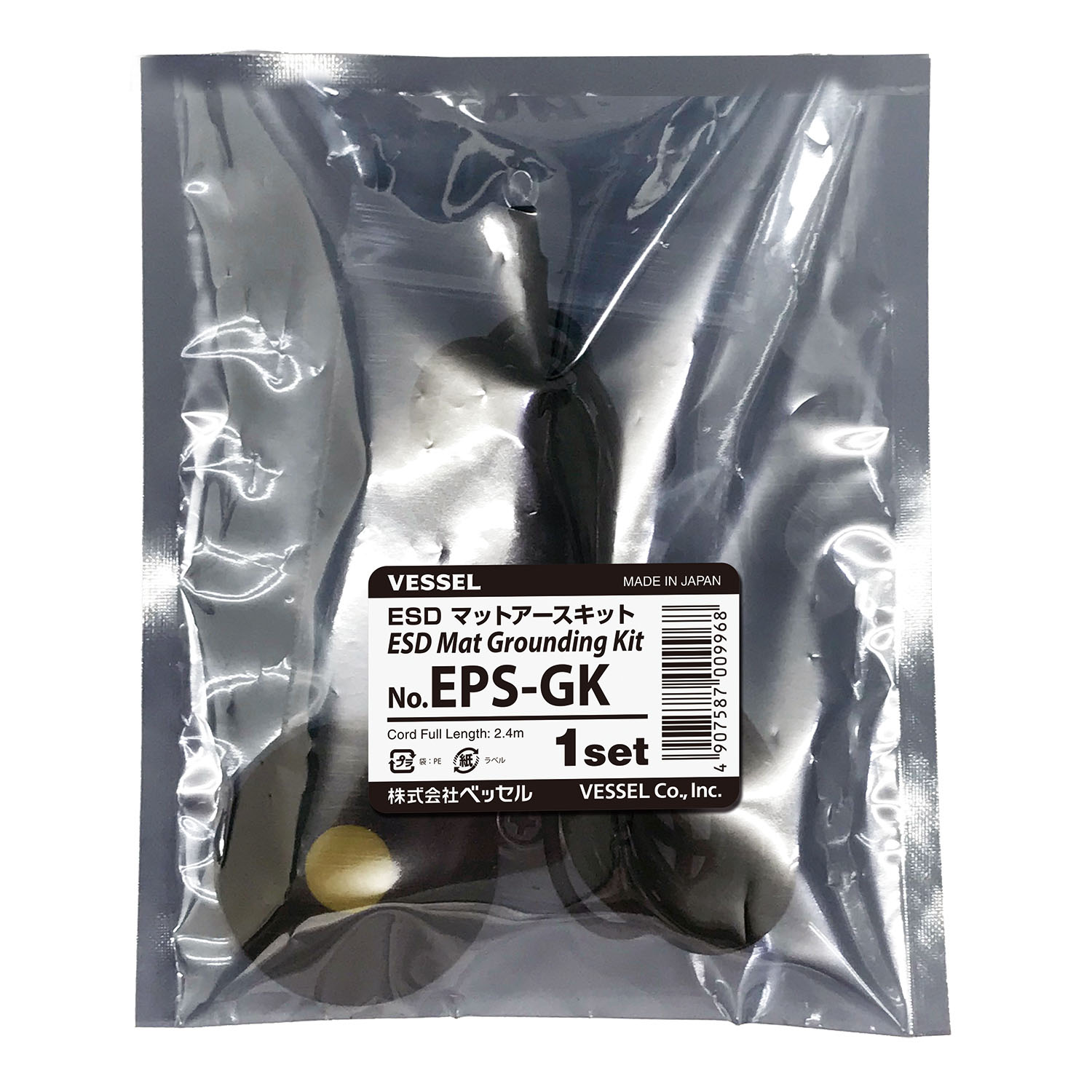

Contents
Ground cord with a snap, snap hardware/screw, single-use punch, instruction manual
Relevant
* Conductive Rubber Mat No.LG-100, SG-100
Applicable
LG-100, SG-100
